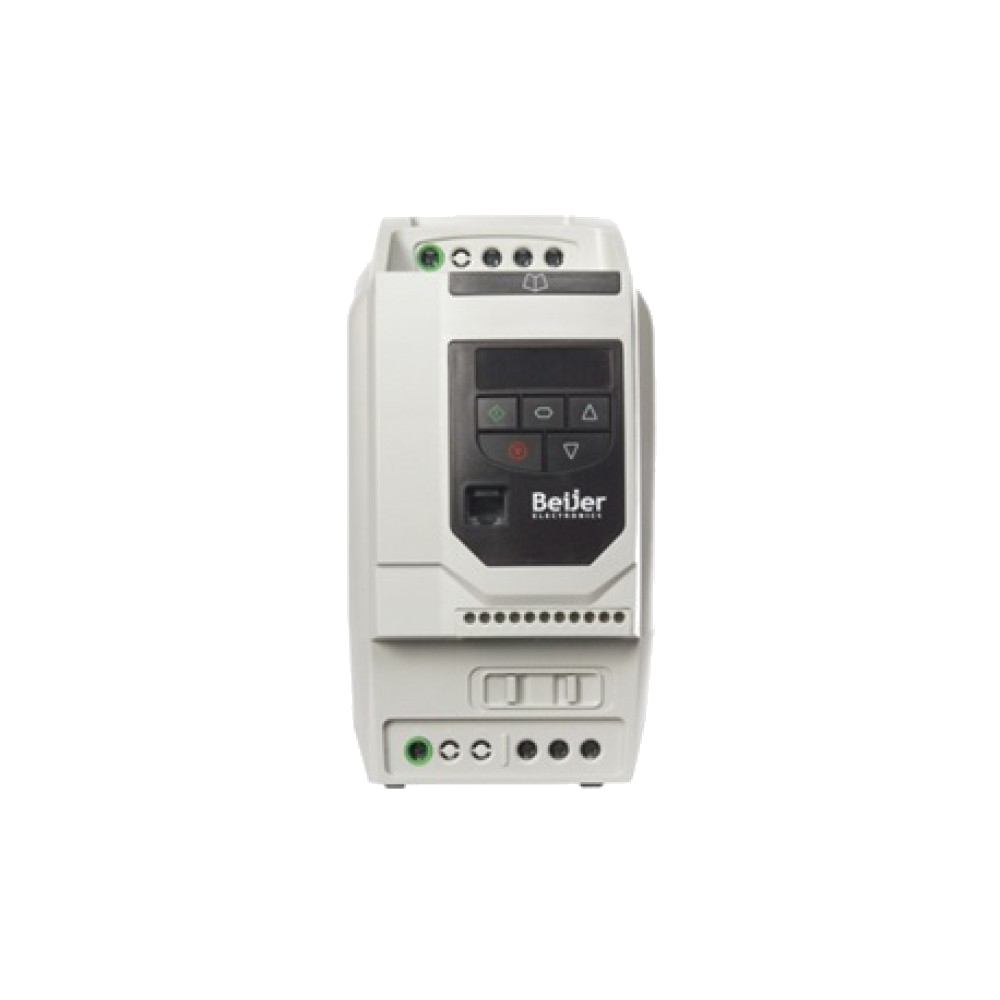

- Output power 4.0 kW
- Output 3x400 VAC, 9.5 A
- Input voltage 3x380-480 VAC
- IP20
General description
| Article number | 61564 |
| Warranty | 2 year |
Mechanical
| IP class | IP20 |
| Physical size | Size 2 |
| Measurements (H x W x D) | 221 mm x 110 mm x 150 mm |
| Weight | 1.7 kg |
| Typical power loss at rated power | 0,02 |
| Main switch | No |
| Built in Main switch, control switch and potentiometer | No |
| Conformal coated PCBs | Yes, 3C2/3S2 conformal coated PCBs |
Output ratings
| Output voltage | 3 x 400 VAC |
| Rated motor current | 9.5 A |
| Overload capacity | 150% for 60 seconds, 175% for 2,5 seconds |
| Motor power | 4.0 kW |
| Output frequency | 0 – 500Hz, 0.1Hz resolution |
| Built-in brake transistor | Yes |
| Regenerative capacity | 100 % ED |
Input ratings
| Supply voltage | 380 – 480VAC ± 10% |
| Voltage fluctuations | +/- 10% |
| Phase imbalance | 3% maximum allowed |
| Displacement factor | > 0.98 |
| Supply frequency | 48 – 62Hz |
| Power cycles | 120 per hour maximum, evenly spaced |
Control specification
| Control modes | V/F Voltage Vector, Energy Optimised V/F, Sensorless Vector Speed Control, Synchronous Reluctance Motor Control, Brushless DC Motor Control, Open Loop PM Vector Control |
| Current/torque limitation | Current limitation |
| PWM frquency | 4-32 kHz effective |
| Stopping mode | Ramp to Stop: User Adjustable 0.1 – 600 seconds,Coast to Stop |
| Braking | Motor Flux Braking |
| Skip frequency | No |
| Analog setpoint control | 0 to 10V, 10 to 0V, 0 to 20mA, 20 to 0mA, 4 to 20mA, 20 to 4mA |
| Digital setpoint control | 4 fixed speeds, Motorised Potentiometer, Keypad, Modbus RTU, CANopen |
Communication
| Modbus RTU | 9.6 - 115.2 kbps (8N1, 8N2, 8E1, 8O1) |
| BACnet MS/TP | No |
| Modbus TCP | No |
| Ethernet IP | No |
| EtherCat | No |
| Profinet IO | No |
| Profibus DP(DPV1) | No |
| Device Net | No |
| CC-Link | No |
| CAN open | Yes, 125 - 1000 kbps |
Display
| Programmable display | No |
| Multi language OLED display | No |
| External OLED display | Yes |
| LED display | Yes |
HVAC
| PID-control | PI-control with sleep/wake up |
| Spin start | Yes |
| Pump dry protection | No |
| Pump prime and burst protection | No |
| Stir function | No |
| Motor pre-heat | No |
| Broken impeller and broken belt detection | No |
| Automatic cleaning for pumps | No |
| Bypass control | No |
| Fire mode | Yes |
Control terminals
| Power supply | 100 mA @ 24 VDC, 10 mA @ 10 VDC |
| Inputs | 4 in total, 2 Digital, 2 Analog or Digital, selectable |
| Digital inputs | 8-30 V DC, PNP, Response time: < 4 msec, Internal or external supply |
| Analog inputs | Resolution:12 bit, Response time: <4 msec; Accuracy: <± 2% of full scale, Adjustable scaling |
| Outputs | 2 total, 1 relay, 1 analog or digital |
| Digital transistor outputs | 24VDC/20 mA, Internal supply |
| Relay outputs | Maximum Voltage: 250 VAC, 30 VDC Switching Current Capacity: 6A AC, 5A DC |
| Analog outputs | 0 to 10 V, 10 to 0 V, 0 to 20mA, 20 to 0mA, 4 to 20mA, 20 to 4mA |
| Safety inputs | No |
| Extra IOs | No |
Control features
| Speed control Master/slave | Slave |
| Modbus master functionality | No |
| Advanced hoist control | No |
| Built-in PLC | No |
Standard compliances
| Low voltage directive | 2014/35/EU |
| EMC directive | 2014/30/EU Cat C1 according to EN61800-3:2004 |
| Conformance | CE, UL |
| Machine directive | 2006/42/EC |
| Marine approvals | No |
| Safe torque OFF | No |
| Restriction of hazardous substances | RoHS2 |
| Registration evaluation and authorisation of chemicals | Reach |
| Earth leakage current | EN 61800-5-1: 2007. Test techniques EN 60990:2000. 1x230 VA < 2,5 mA, 3x400VAC < 4,65 during runing |
| DC Bus discharge time | EN 61800-5-1:2007 |
| Electrostatic discharge | EN 61800-3:2004+A1-2012. Test techniques EN 61000-4-2:2009. |
| Dielectric strength | 61800-5-1: 2007 |
| Surge | EN 61800-3: 2004+A1-2012. Test techniques EN 61000-4-5:2006. |
| Electrical fast transient burst | EN 61800-3: 2004+A1-2012. Test techniques EN 61000-4-4:2004. |
Ambient conditions
| Temperature operation | -20 to 50 °C |
| Humidity | 95% max, non-condensing |
Maintenance
| Fault memory | Last 4 Trips stored with time stamp |
| Data logging | Logging of data prior to trip, Current, Temperature, DC Bus Voltage |
| Maintenence indicator | No |
